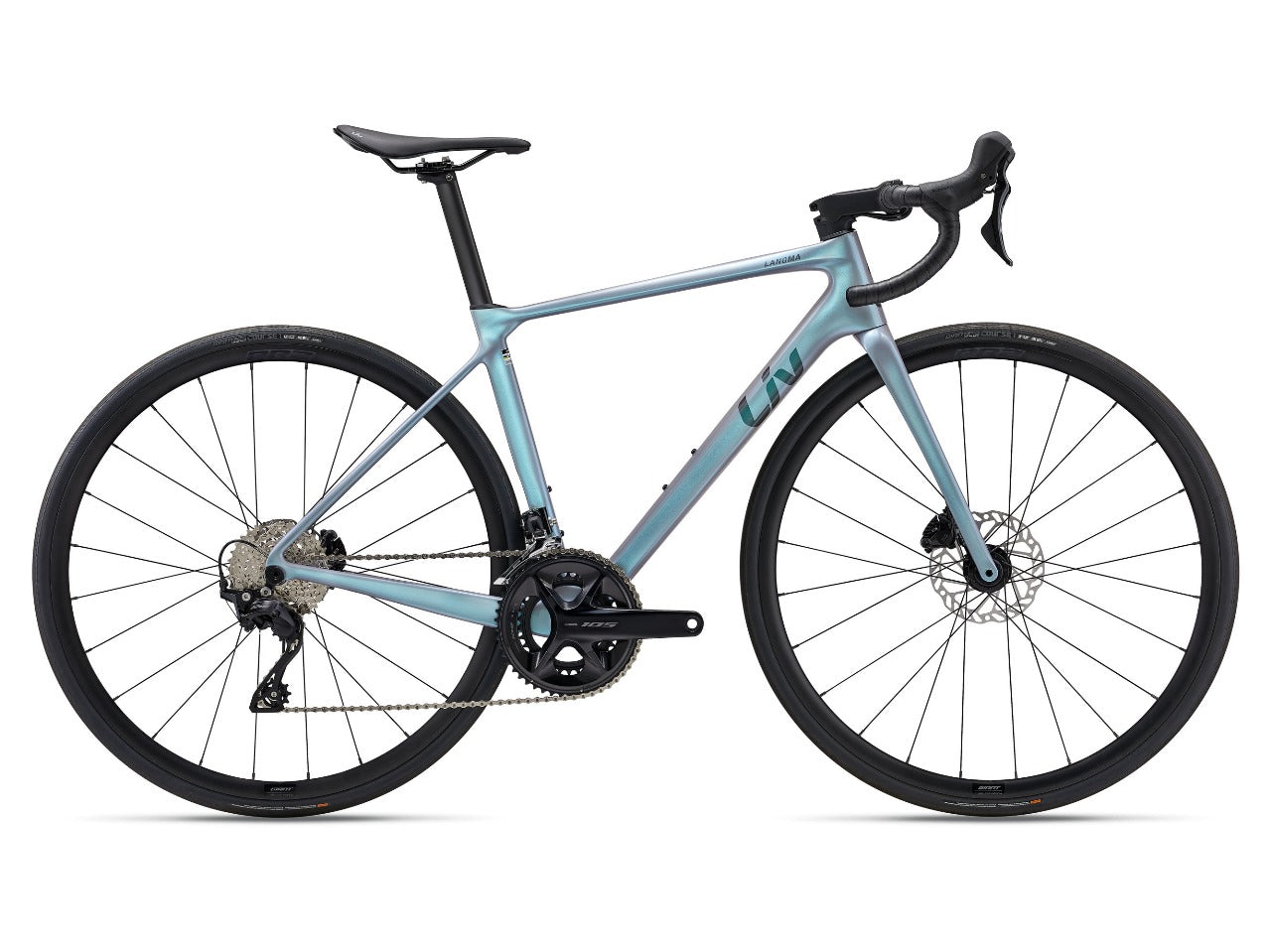

BIC LIV LANGMA ADVANCED 2 QOM | GIANT

FRAME
SIZES XXS, XS, S, M, L
COLORS Prismatic Haze, Panther
FRAME Advanced-Grade Composite, 12x142mm thru-axle, disc
FORK Advanced-Grade Composite, full-composite OverDrive steerer,
12x100mm thru-axle, disc
COMPONENTS
HANDLEBAR Liv Contact XXS: 360mm, XS: 360mm, S: 380mm, M: 400mm, L: 420mm
GRIPS Liv Stratus Elite 2.0
STEM Giant Contact AeroLight XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L:
110mm
SEATPOST Giant Variant, composite, -5/+15mm oset
SADDLE Liv Approach
DRIVETRAIN
SHIFTERS Shimano 105
FRONT DERAILLEUR Shimano 105
REAR DERAILLEUR Shimano 105
BRAKES Shimano 105 hydraulic, Giant MPH rotors [F] 160mm, [R] 140mm
BRAKE LEVERS Shimano 105 Di2
CASSETTE Shimano 105, 12-speed, 11x36
CHAIN KMC X12L-1
CRANKSET Shimano 105, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L:
172.5mm
BOTTOM BRACKET Shimano, press t
WHEELS
RIMS Giant P-R2, [F] 25mm, [R] 25mm
HUBS 12mm thru-axle
SPOKES stainless
TIRES Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
EXTRAS tubeless prepared, 33mm max tire size
GEOMETRY
FRAME XXS XS S M L
Seat Tube Length (mm) 390 420 450 480 510
Seat Tube Angle 75.0° 75.0° 74.5° 74.0° 73.5°
Top Tube Length (mm) 498 508 524 540 555
Head Tube Length (mm) 105 120 135 155 175
Head Tube Angle 70.0° 71.0° 72.0° 72.5° 72.5°
Fork Rake (mm) 49 49 49 49 49
Trail (mm) 74 68 61 58 58
Wheelbase (mm) 970 973 977 984 994
Chain Stay Length (mm) 405 405 405 405 405
Bottom Bracket Drop (mm) 72 72 69.5 69.5 69.5
Stack (mm) 499 517 532 553 572
Reach (mm) 364 370 377 382 386
Stand Over Height (mm) 685 707 736 763 783
Handlebar Width (mm) 360 360 380 400 420
Stem Length (mm) 80 80 90 100 110
Crank Length (mm) 165 165 170 170 172.5
Wheel Size 700C 700C 700C 700C 700C
